4 Port x 300M + Single Setting Electrical Controls

4 Port x 300M + Single Setting Electrical Controls

  • Product Code: 04PX300WS
  • Availability: In Stock
  • €722.01


(The maximum floor heating area is 45 sq meters when the pipe is installed at 150mm pipe centres. The longest pipe loop length should not exceed a maximum of 100 meters. Also consider pipe distance to manifold location.)

Kit includes;-    Price includes the following;-

  • 4 Port Underfloor Heating solid brass nickel plated manifold including;-
  • 4 flow meters,
  • hot and cold ¼ turn butterfly isolating valves,
  • 2 temperature gauges,
  • 2 filling and drain off valves.
  • 2 air vents.
  • 8 seal fittings.
  •
  • 300 meters of 16mm Pex-Aluminum-Pex underfloor heating pipe.
  • 36 meters of Premier Fastrack rail.
  • 500 Premier 63mm green staple clips.

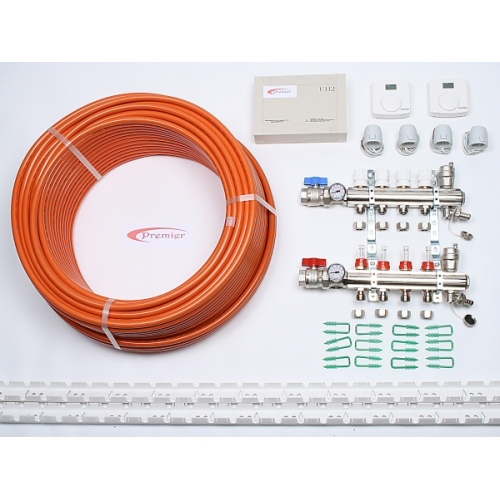

(Please note photos are only for illustration purposes and not all the parts supplied with this kit are shown in photo. Always fit high density insulation around the bottom edge of internal and external walls protecting the heat in the concrete slab. Also sleeve underfloor heating pipe with 25mm corrugated pipe through doorways and floor joints etc. Always remove water from underfloor heating pipe systems if not in use or during house construction while waiting for the underfloor heating system to be commissioned.

Electrics;-    Price also includes the following;-

·        2 Heatmiser DS1-L thermostat. (2 zones)

·         1 Heatmiser UH2 wiring centre.

·         4 Premier 230 volt electric actuators.





(This suggested electrical equipment is to accommodate two zones and to provide actuators to control all four loops. This is a usual electrical control system to suit an oil boiler or gas boiler heating system etc. All the suggested electrical equipment may not be necessary if the underfloor heating is heated from a low temperature geothermal heat source.)



For advice please telephone 023 8841028 during business hours or email info@premierplastics.ie anytime. You may also email, fax or post the house drawings to us for an accurate estimate of cost.
